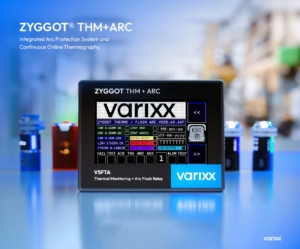

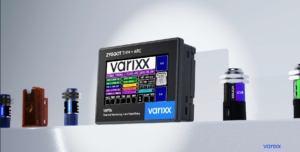

ZYGGOT THM+ARC is an innovative protection and measurement solution developed to meet the growing demands for reliability and safety in low and medium power electrical systems. Integrating the continuous online thermography
system, ZYGGOT Temperature, and the arc detection system, ZYGGOT Arc. ZYGGOT THM+ARC combines the best of thermography and arc detection technologies in a single relay, offering robust monitoring, safety and protection.
Available in Mono and Multi Gateway versions, the system adapts to a variety of applications and needs, facilitating integration with existing industrial architectures and providing a quick and effective response to potential anomalies. This solution reflects Varixx’s commitment to providing long-life, high-quality products capable of optimizing risk management and ensuring the protection of critical assets.
General Characteristics
-
Color Touch Screen: Modern and user-friendly interface.
-
Ethernet communication: Compatible with various protocols for greater versatility.
-
Advanced Integration: Networks of common temperature and arc sensors, combining are protection and continuous thermography.
-
Continuous Measurements: Monitor temperature and voltage of 100 temperature sensors and 100 arc sensors.
-
Space Savings: The ZYGGOT THM+ARC is designed to take up less space in the panel door, consolidating temperature monitoring and arc protection in one compact unit.
Protection Resources
-
UV Arc Protection: Patented technology (Patent No. PI 0903809-4), the most advanced in the world.
-
Incident Energy Reduction: Reduces incident energy by up to 150 times compared to systems that use light and current for detection.
-
No Current Measurement Required: Arc confirmation without the need to measure current.
Advanced Features
-
Multi Gateways and Mono versions: High selectivity for arc tripping. Low cost tripping gateway available for cubicles or associated circuit breakers.
-
Real-time Graphical Record plot: Continuous visualization of operational data.
-
Fault and Event History: Information storage for future analysis.
Communication and Protocols
-
Equipped with Modbus RTU and Ethernet interfaces, the system guarantees quick and easy integration with customer’s automation architectures, providing remote access to data and allowing flexible configurations.
-
Modbus RTU and Other Protocols: Compatibility for integration with other systems.
-
Versatility in Communication: Solutions that meet different integration needs with the DCS systems.
